Complete Interview Guide For Accenture

Professional Interview Tips and Tricks

Jobs and Placement

are one of the most important and key things on your way to become a successful engineer. Everyone has a dream while studying engineering to get placed in a dream company, and one gives his best to achieve their dream.

Today we have with us one such enthusiast Shantanu who strove hard to reach this peak and today he is going to share with us his success mantras. I know Shantanu personally. He is a great person indeed. Ever ready to help and never tired of answering. I guess we couldn't have found a better person than him for the first interview of EntcEngg.

Shantanu Ingle
Associate developer
"ACCENTURE"

EntcEngg: Hello Shantanu, welcome to EntcEngg and really thank you for giving your valuable time to us.

Shantanu: It's my pleasure to be part of this wonderful initiative from you !

EntcEngg: Tell us something about yourself, where have you done your engineering from and which branch?

Shantanu: I am a 4th year E&Tc Engg student from Pune Institute of Computer Technology.

EntcEngg: What was your aggregate for all the years and did you prepare for you exams keeping placements in mind?

Shantanu: My aggregate was 61%. No, I didn’t prepared for any exam.

EntcEngg: Did you have a company in your mind as a Dream company, you always wished to work with?

Shantanu: Yes I did !  I wanted to work with a startup or at least with similar environment organisation. So the only company which came in that category was Thoughtworks.

EntcEngg: When did you start taking placements seriously and how did you prepare for them?

Shantanu: Well frankly speaking, I didn't prepare for any aptitude exam. The company i got placed was seeking general apti preparations. So if you are good with the  basics like Logical reasoning , quantitative analysis and English grammar you have won half of the battle.

EntcEngg: What extra-curricular activities you did apart from studies?

Shantanu: I volunteered for various college’s technical events from 1st year of my Engg and i was a part of college’s Robocon Team in 3rd year.

EntcEngg: Tell us in brief about your placement, the number of rounds and type of questions?

Shantanu: I got placed at Accenture in the month of September this year. It was mass recruiter so the requirement for aptitude was general aptitude preparations as i mentioned in the above question. For Aptitude preparations, practice RS Aggarwal for quantitative, logical and verbal.

EntcEngg: Tell us about the Interview. What did they ask and how did you answer those questions?

Shantanu: The Interview was not that tricky. The recruiters were asking general information about me and the project.

You can also see Tips For Interview

EntcEngg: That one question which made you sweat in the interview. what did you answer and did it satisfy them?

Shantanu: There was no such question.

But there can be questions like this which can catch you off guard 10 Unexpected Interview Questions and Answers



EntcEngg: Which books you referred for Aptitude and other stuff?

Shantanu: RS Aggarwal

EntcEngg: What was the base of your aptitude?

Shantanu: It was based on Quantitative,logic and Verbal reasoning.

EntcEngg: What was the base of the Interview? I mean was it programming related or was it something else? Please elaborate.

Shantanu: BE project.

EntcEngg: What exactly is HR round? What did they ask their?

Shantanu: HR basically is a formality round once if you have cleared the technical round then it's not so tough to clear HR. In HR they ask you about your hobbies, interests , why should we hire you and your future plans.

EntcEngg: Did you go to any Coaching classes for some kind of preparation?

Shantanu: No coaching classes.

EntcEngg: What are your future plans? are you willing to appear for GATE, GRE or MBA entrance?

Shantanu: I would continue with my job.

EntcEngg: Did they ask anything regarding your projet?

Shantanu: Yes, My interview was based on my BE project.

EntcEngg: Thanks Shantanu for this short interview it was really helpful for us, students are going to learn a lot from this.Once again thanks for sparing your valuable time with us.

Shantanu: Anytime..! You can comment below with your questions and also  reach me on facebook.

Guys you can ask whatever questions you have for Shantanu by commenting below or on our Facebook Page . Any questions are welcome we will be more than happy to answer all your questions.

To get further interview update from more candidates please like our facebook page subscribe to our newsletter to directly get the updates in your mailbox by clicking on the subscribe box to right of the screen.

If you liked this interview please like and share it on facebook and write to us your expectations and suggestions in the contact form below.

Read More

PIC Microcontroller (Architecture, Features, Programming, Datasheet, Projects)

PIC MICROCONTROLLER

PIC stands for peripheral interface controller

Where as F stands for Flash it represents the type of memory used,
In 2000, Microchip introduced the PIC18 architecture.Unlike the 17 series,with a large number of device variants presently in manufacture. In contrast to earlier devices, which were more often than not programmed in assembly, C has become the predominant development language.

PIC18F4520

Parameters of PIC18F4520 micro controller

Pin Diagram Of PIC18F4520

The 18 series inherits most of the features and instructions of the 17 series, while adding a number of important new features:

PIC18 uses flash memory so that a data can be saved and erased number of times as per user requirement, not only this the battery used is used to give clock to the device.

Features of PIC micro controller

  CPU

        Up to 10 MIPS Performance at 3V

        C compiler optimized RISC architecture

        8x8 Single Cycle Hardware Multiply

  System



        Internal oscillator support-31 kHz to 8MHz with 4xPLL

        Fail-Safe Clock Monitor- allows safe shutdown if clock fails

        Watchdog Timer with separate RC oscillator

        Wide operating Voltage range; 2.0V to 5.5V

 nanoWatt Power Managed Modes

        Run, Idle and SLEEP modes

        Idle mode currents down to 5.8uA typical

        Sleep mode currents down to 0.1uA typical



 Analog Features

        10-bit ADC, 13 channels, 100K samples per second

        Programmable Low Voltage Detection Module

        Programmable Brown-out-Reset Module

        Two Analog Comparators multiplexing

  Peripherals

        Master Synchronous Serial Port supports SPI™ and I2C™ master and slave mode

        EUSART module including LIN bus support

        Four Timer modules

        Up to 5 PWM outputs

        Up to 2 Capture / Compare

Advantages

1. Small instruction set to learn and implement
2. PIC has RISC architecture
3. Built-in oscillator with selectable speeds
4. Easy entry level, in-circuit programming plus in-circuit debugging PICkit units available for less than $50
5. Inexpensive microcontrollers
6. Wide range of interfaces including I²C, SPI, USB, USART, A/D, programmable comparators, PWM, LIN, CAN, PSP, and Ethernet
7. Availability of processors in DIL package make them easy to handle for hobby use.

Comparison between PIC and 8051

8051- if u want a cheap controller with basic functions then 8051 will suffice . It will be of great use in your low cost college projects.

PIC- Cheap , used in refrigerators and low budget projects .

8051 and PIC need multiple clock cycles per instruction. AVR and ARM execute most instructions in a single clock cycle.

8051 and PIC have limited stack space - limited to 128 bytes for the 8051, and as little as 8 words or less for PIC. Writing a C compiler for these architectures must have been challenging, and compiler choice is limited.

Real Time Applications and Projects of PIC

1) PIC can be used to design Data Acquisition System

2)Digital clock can be implemented using PIC

3)Frequency counter are another application

4)PIC can be used as Timers, counters

5)We can design a calculator using PIC


Download Datasheet of PIC18F4520

Check out how to use PIC microcontroller using PICKit 3 or Proteus.

You can also learn how to configure DSP Processor.




Check out Complete Interview Guide For BE

Read More

How To Configure and Run DSP Processor

Digital signal processor (DSP)

Digital signal processor (DSP) is a special type of microprocessor (or a SIP block), with its architecture optimized for the operational needs of digital signal processing.


Digital Signal Processors (DSP) take real-world signals like voice, audio, video, temperature, pressure, or position that have been digitized and then mathematically manipulate them. A DSP is designed for performing mathematical functions like "add", "subtract", "multiply" and "divide" very quickly.

C6713DSK in CCSv5

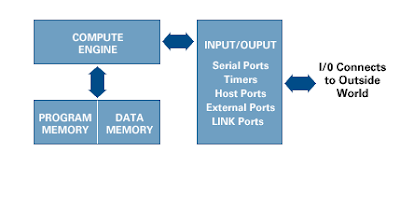

What is inside a DSP processor?

A DSP contains these key components:

• Data Memory: Stores the information to be processed by processor
• Program Memory: Stores the programs which the DSP will use to process data
• Input/Output: Serves a range of functions to connect to the outside world
• Compute Engine:It performs the math processing, accessing the program from the Program Memory and data from  Data Memory

Required Softwares

Download board support files from Spectrum Digital Website.
Unpack all files to C:\
Download CSL form TI website
Install it at C:\C6xCSL directory
Set all of jumpers on SW3 and SW1 to OFF
Connect USB then connect power

Run 6713SDKDiag.exe from C:\DSK6713\drivers to check emulator connection

Following is a step by step guide to setup a DSP processor using Non real steps CCS v5.3 DSK6713

Step 1
Click on ccs5.3.0 icon as shown below

Workspace window will get open select as default or you can give your location.

Close TI Explorer window

Create new target configuration
File--> new--> targetconfiguration

Filename: test1.ccxml

Connection: spectrum digital DSK-EVM-eZdsp on board USB emulator

Board or device: TMS320C6713

View--> targetconfiguration

Right click on your target configuration window open at right side, set as sefault

It will jump from edit perspective to debug perspective.

Run --> connect target

Your target is connected.

Create  new project

File-->new --> ccs project

Select as shown below.

Write the code in main.c file or copy paste.

Right click on project --> build project

It will generate the .out file in debug folder.

Move from edit perspective to debug prospective.

Run --> load -->load program.

Browse project

Select Debug --> xyz.out

Ok-->ok

Run --> resume.

See the out put on console.

To see graph.

Tools --> graph --> single time.

Selct as shown

Real time

It is same like non real but you need to add BSL and CSL file.

Copy real time codec code to main.c.

Right click on project --> add files

C:\CCStudio_v3.1\C6000\dsk6713\lib\dsk6713bsl.lib

C:\CCStudio_v3.1\C6000\csl\lib\csl6713.lib

Add header file for csl and bsl.

Right click on project properties --> include option

Add dir to #include click on green colour plus sign symbol.

C:\CCStudio_v3.1\C6000\dsk6713\include.

C:\CCStudio_v3.1\C6000\csl\include.

Predefined symbol -->  pre-define Name

click on green colour plus sign symbol.

Type CHIP_6713 and save.

Now debug the code and  load the .out file to board same like non real procedure.

Possibility error

Install again and again

Disable antivirus or uninstall

Add gel files:

CCStudio_v3.1\cc\gel\DSK6713.gel

Add

Linker command file : C:\CCStudio_v3.1\tutorial\dsk6713\hello1\hello.cmd

and

Run time support libarray: C:/CCStudio_v3.1/C6000/cgtools/lib/rts6700.lib

You can also check out Matlab Programs.
Discrete Fourier transform program

Read More

Linear Convolution Matlab Program

Linear Convolution

Aim: To perform linear convolution using MATLAB

Requirements:
MATLAB 2007 and above (other version may also work but i havent tried personally)



Theory

Convolution is a formal mathematical operation, just as multiplication, addition, and integration. Addition takes two numbers and produces a third number, while convolution takes two signals and produces a third signal. Convolution is used in the mathematics of many fields, such as probability and statistics. In linear systems, convolution is used to describe the relationship between three signals of interest: the input signal, the impulse response, and the output signal.

If the input and impulse response of a system are x[n] and h[n] respectively, the convolution is given by the expression,

x[n] * h[n] = ε x[k] h[n-k]

Where k ranges between -∞ and ∞

If,

x(n) is a M- point sequence
h(n) is a N – point sequence
then, y(n) is a (M+N-1) – point sequence.

In this equation, x(k), h(n-k) and y(n) represent the input to and output from the system at time n. Here we could see that one of the inputs is shifted in time by a value every time it is multiplied with the other input signal. Linear Convolution is quite often used as a method of implementing filters of various types.

In mathematics and, in particular, functional analysis, convolution is a mathematical operation on two functions f and g, producing a third function that is typically viewed as a modified version of one of the original functions, giving the area overlap between the two functions as a function of the amount that one of the original functions is translated. Convolution is similar to cross-correlation. It has applications that include probability, statistics, computer vision, natural language processing, image and signal processing, engineering, and differential equations.

The convolution can be defined for functions on groups other than Euclidean space. For example, periodic functions, such as the discrete-time Fourier transform, can be defined on a circle and convolved by periodic convolution. A discrete convolution can be defined for functions on the set of integers. Generalizations of convolution have applications in the field of numerical analysis and numerical linear algebra, and in the design and implementation of finite impulse response filters in signal processing.


Matlab allows us to perform almost all of the digital signal processing applications on software, which makes it a lot easier to study the principles of digital signal processing and digital communication. Matlab almost performs all the operations regarding audio video and signals. One of the most important feature of matlab is that we can plot our results and observe them which is difficult manually.

Computing the inverse of the convolution operation is known as deconvolution.

x=input('Enter the first sequence - ');
h=input('Enter the second sequence - ');
m=length(x);
n=length(h);
y=zeros(1,m+n-1);
h=[h,zeros(1,m+n-1)];
x=[x,zeros(1,m+n-1)];
cnt=0;
for i=1:1:m+n-1;
    cnt=i;
    for j=1:1:n
        y(1,cnt)=y(1,cnt)+h(j)*x(i)
        if cnt<m+n-1
            cnt=cnt+1;
        end

    end
end
disp (y)

Result: Throught this experiment we were able to verify linear convolution using matlab, we can verify circular convolution using linear convolution you can check below post
Here are some other programs of DSP Matlab

Discrete fourier transform
Modulo operator
Linear Convolution

Read More

Discrete Fourier Transform Matlab Program (Digital Signal Processing)

Discrete Fourier Transform Matlab Program

Fourier transformation is used to decompose time series signals into frequency components each having an amplitude and phase. Using the inverse Fourier transformation the time series signal can be reconstructed from its frequency-domain representation. Fourier transformation is one of the most important concepts in digital signal processing and is not only used for estimating the spectral distribution of a signal in the frequency domain (the power spectrum). Fourier transformation is also the foundation of coherence analysis and certain types of so called surrogate signals. Finally, the Fourier transformation is implemented in many DSP (Digital Signal Processing) routines because any mathematical operation in the time domain has an equivalent operation in the frequency domain that is often computationally faster. Thus, Fourier transformation is occasionally implemented solely to speed up algorithms. Using the inverse Fourier transformation, the time-domain signal is reconstructed from its frequency domain representation.

Matlab allows us to perform almost all of the digital signal processing applications on software, which makes it a lot easier to study the principles of digital signal processing and digital communication. Matlab almost performs all the operations regarding audio video and signals. One of the most important feature of matlab is that we can plot our results and observe them which is difficult manually. Following is the program to generate a dft sequence and observe the output on the graph and verify the result manually


Comparison between FFT and DFT


The Fourier transform is important in mathematics, engineering, and the physical sciences.  Its discrete counterpart, the Discrete Fourier Transform (DFT), which is normally computed using the so-called Fast Fourier Transform (FFT), has revolutionized modern society, as it is ubiquitous in digital electronics and signal processing.  Radio astronomers are particularly avid users of Fourier transforms because Fourier transforms are key components in data processing (e.g., periodicity searches) and instruments (e.g., antennas, receivers, spectrometers), and they are the corner stores of interferometry and aperture synthesis.

%% The Program Generates DFT of a Sequence

% Equation of DFT implemented as part of assignment

% The Function takes x as discrete time sequence input from user

% N point DFT is calculated for the same sequence

% N can be default equal to length(x) or any input from user of 2^

% Syntax of calling Function from other program or command prompt

% x=input('Enter the sequence from user');

% N1=input('Enter the N Point DFT of the sequence');

function [X]=mydft(x,N1)
% if length of N point DFT given by user,
% N will be calculted for length(x)
x=input('Enter the sequence from user');
N1=input('Enter the N Point DFT of the sequence')
len=length(x);
if N1<len
    N=len;
else
    N=N1;
end
% pre allocation of Variable X: Generation of zeros Matrix
X=zeros(1,N);
%% Computation of DFT of the sequence
% X[k]=x[n]*exp(-j*2*pi*n*k);

%X[k]=x[n]*[cos(2*pi*n*k)-j*sin(2*pi*n*k)];
%X[k]=x[n]*W  where W=exp((-j*2*pi*n*k)/N);
% The limits of k, n can varied from 1:N hence in equation (k-1), (n-1)
% being used

for k=1:N
    for n=1:N
        X(1,k)=X(1,k)+x(n)*(cos((2*pi*(k-1)*(n-1))/N)-j*(sin((2*pi*(k-1)*(n-1))/N)));
    end
end

%% The results can be verified with built in function fft
X1=fft(x,N);

Output

You can directly copy paste this program in your Matlab Editor and run it, any queries and questions are welcome.

Read More
